这个文章主要来聊一聊Net Core中的认证与授权，以及Net Core生态中非常火热的IdentityServer4这个组件的使用，主要内容如下：

鉴权授权流程变化
源码解读鉴权
源码解读多授权策略
JWT和Identity

鉴权授权流程变化

Http协议

无状态&轻量级
请求–响应式–传输是文本
再次请求—不知道你刚来过
如果想识别—带个签名/证明/工卡/Token—就是放在文本里面

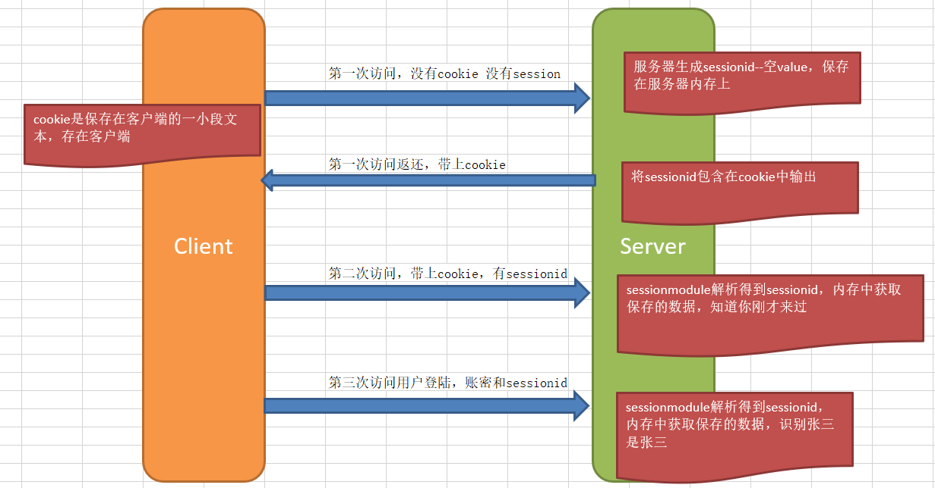

基本流程：其实是为了解决无状态下的用户识别问题

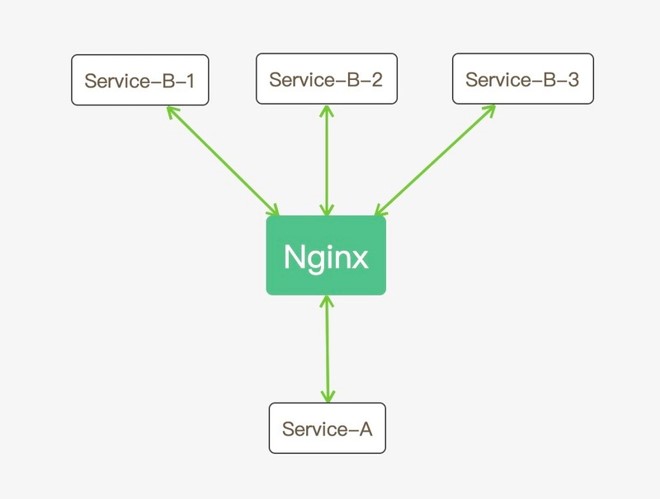

第一，如果是集群，cookie和session如何应对？
Session共享，完成集群的session识别。

第二，如果是分布式的，如何解决呢？甚至是分布式的还是跨局域网络的，第三方的，又该如何解决？

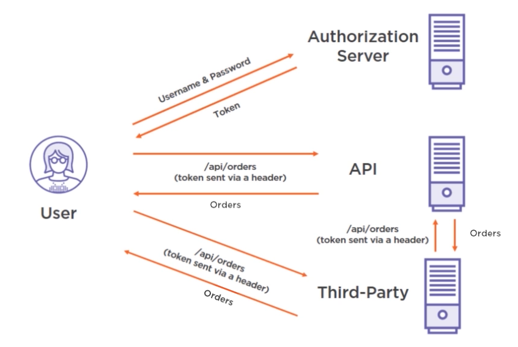

会用Token来解决，可以参考下图Id4的架构。

源码解读鉴权

登录验证-授权

常规的Cookie+Session+Filter模式
基于IAuthorizationFilter，
通过OnAuthorization
发生在请求进入MVC伊始

cookie只是实现session的其中一种方案。虽然是最常用的，但并不是唯一的方法。禁用cookie后还有其他方法存储，比如放在url中。
先看这种土办法如何实现：
第一，要在自定义Attribute，需要继承IAuthorizationFilter,如下：
context.HttpContext.Request.Cookies[“CurrentUser”];会检查cookie中是否有current user。

public class CustomAuthorizationFilterAttribute : Attribute, IAuthorizationFilter
    {
        public void OnAuthorization(AuthorizationFilterContext context)
        {
            if (context.ActionDescriptor.EndpointMetadata.Any(item => item is AllowAnonymousAttribute))
            {
                return;//匿名 不检查
            }
            string sUser = context.HttpContext.Request.Cookies["CurrentUser"];

            if (sUser == null)
            {
                context.Result = new RedirectResult("~/Home/Index");
            }
            else
            {
                //还应该检查下权限
                return;
            }
        }
    }

第二，配置管道，如下：使用cookie和Authorization并且关了Authentication.

public void ConfigureServices(IServiceCollection services)
  ...
  services.AddAuthentication()
  .AddCookie();
  ...
}


public void Configure(IApplicationBuilder app, IWebHostEnvironment env)
{
  ...
  //app.UseAuthentication();
  app.UseAuthorization();
  ...
}

第三，配置验证标签：无论加不加[CustomAuthorizationFilter]这个标签如何都会去执行CustomAuthorizationFilterAttribute 中的OnAuthorization方法。如果是加了AllowAnonymous这个标签，那就回通过。

[CustomAuthorizationFilter]
public class HomeController : Controller
{
   [AllowAnonymous]
   public IActionResult Login(string name, string password)
   {
      if ("chaoqiang".Equals(name, StringComparison.CurrentCultureIgnoreCase)&& password.Equals("123456"))
      {
          #region Filter
          base.HttpContext.Response.Cookies.Append("CurrentUser", "chaoqiang", new Microsoft.AspNetCore.Http.CookieOptions()
          {
            Expires = DateTime.UtcNow.AddMinutes(30)
          });
          #endregion

          return new JsonResult(new
          {
            Result = true,
            Message = "登录成功"
           });
          }
        else
        {
          return new JsonResult(new
          {
            Result = false,
            Message = "登录失败"
          });
      }
    }

  public IActionResult Privacy()
  {
    return View();
  }
}

上述过程是：当通过login的验证之后，会将cookie放入rsponse中，后面请求就可以访问Privacy这个方法了。

Authentication和Authorization

鉴权——->授权
鉴权：鉴定身份，有没有登录，你是谁
授权：判定有没有权限

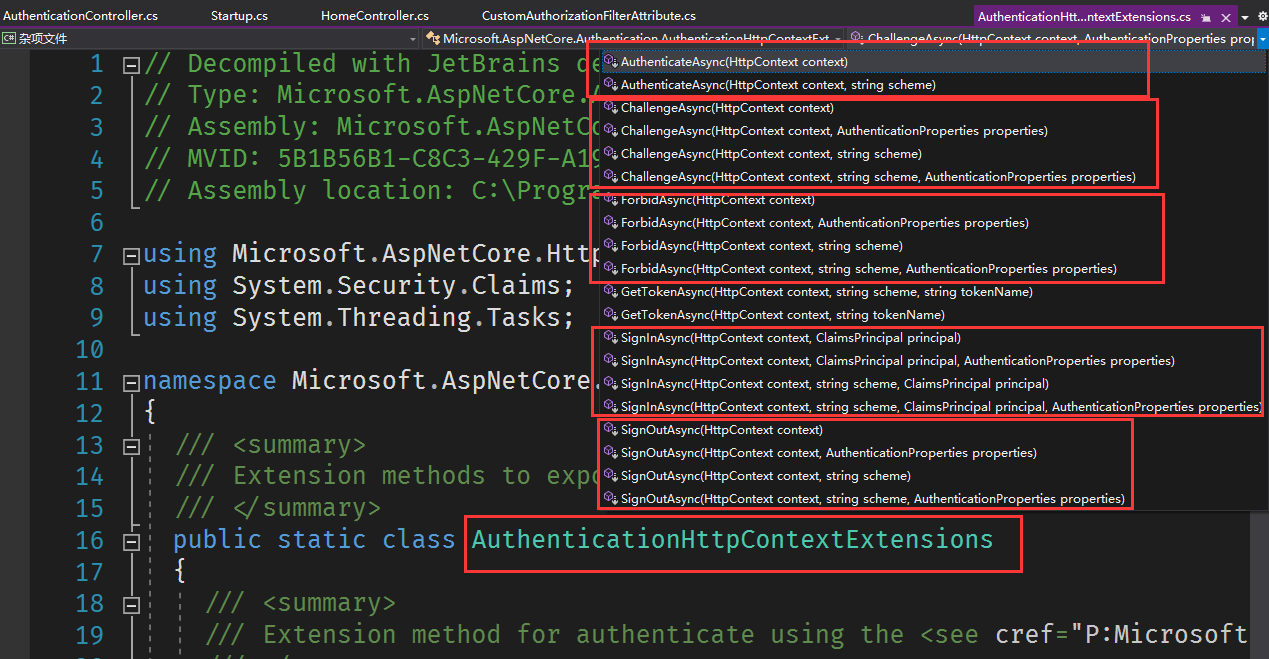

鉴权授权里面，是通过AuthenticationHttpContextExtensions的5个方法—其实最终还是要写cookie/session/信息

都是调用的IAuthenticationService，ConfigureService注册进去

#region 最基础认证--自定义Handler
//services.AddAuthenticationCore();
services.AddAuthentication().AddCookie();
#endregion

AddAuthentication又通过AuthenticationCoreServiceCollectionExtensions.AddAuthenticationCore实现，主要是下面三个：

IAuthenticationService
IAuthenticationHandlerProvider
IAuthenticationSchemeProvider
5个方法默认就在AuthenticationService，找handler完成处理

造轮子

理解完源码的脉络，尝试自己写个简化版的鉴权流程：

#region 最基础认证--自定义Handler
services.AddAuthentication().AddCookie();
services.AddAuthenticationCore(options => options.AddScheme<CustomHandler>("CustomScheme", "DemoScheme"));
#endregion

此时对应的中间件app.UseAuthentication();这个就不再需要了，用自定义的处理方式了。

下面看一下对应的 CustomHandler是如何来构造的：

// CustomHandler完成5个动作
// 三个接口，登录/退出分开的原因有远程校验

public class CustomHandler : IAuthenticationHandler, IAuthenticationSignInHandler, IAuthenticationSignOutHandler
{
  public AuthenticationScheme Scheme { get; private set; }
  protected HttpContext Context { get; private set; }

  public Task InitializeAsync(AuthenticationScheme scheme, HttpContext context)
  {
    Scheme = scheme;
    Context = context;
    return Task.CompletedTask;
  }

  public async Task<AuthenticateResult> AuthenticateAsync()
  {
    var cookie = Context.Request.Cookies["CustomCookie"];
    if (string.IsNullOrEmpty(cookie))
    {
      return AuthenticateResult.NoResult();
    }
    return AuthenticateResult.Success(Deserialize(cookie));
  }

  public Task ChallengeAsync(AuthenticationProperties properties)
  {
    //Context.Response.Redirect("/Account/Login");//跳转页面--上端返回json
    return Task.CompletedTask;
  }

  public Task ForbidAsync(AuthenticationProperties properties)
  {
    Context.Response.StatusCode = 403;
    return Task.CompletedTask;
  }

  public Task SignInAsync(ClaimsPrincipal user, AuthenticationProperties properties)
  {
    var ticket = new AuthenticationTicket(user, properties, Scheme.Name);
    Context.Response.Cookies.Append("CustomCookie", Serialize(ticket));
    return Task.CompletedTask;
  }

  public Task SignOutAsync(AuthenticationProperties properties)
  {
    Context.Response.Cookies.Delete("CustomCookie");
    return Task.CompletedTask;
  }

  private AuthenticationTicket Deserialize(string content)
  {
    byte[] byteTicket = System.Text.Encoding.Default.GetBytes(content);
    return TicketSerializer.Default.Deserialize(byteTicket);
    }
  private string Serialize(AuthenticationTicket ticket)
  {
    //需要引入  Microsoft.AspNetCore.Authentication
    byte[] byteTicket = TicketSerializer.Default.Serialize(ticket);
    return Encoding.Default.GetString(byteTicket);
  }
}

第一步：登陆一下访问login方法，将claim放入到claimIdentity中，再将claimIdentity 放入到ClaimsPrincipal中，然后丢给SignInAsync这个方法去处理，从而找对应的这个CustomHandler。
说明一下：

Claim：信息
ClaimsIdentity：身份
ClaimsPrincipal：一个人可以有多个身份
AuthenticationTicket：用户票据
加密一下—写入cookie

public async Task<IActionResult> Login(string name, string password)
{
  //base.HttpContext.RequestServices.
  //IAuthenticationService

  if ("chaoqiang".Equals(name, StringComparison.CurrentCultureIgnoreCase) && password.Equals("123456"))
  {
    //初始化ClaimsIdentity("Custom")带上参数，否则IsAuthenticated是false
    var claimIdentity = new ClaimsIdentity("Custom");
    claimIdentity.AddClaim(new Claim(ClaimTypes.Name, name));
    claimIdentity.AddClaim(new Claim(ClaimTypes.Email, "chaoqiang@qq.com"));
    //claimIdentity.IsAuthenticated = true;
    await base.HttpContext.SignInAsync("CustomScheme", new ClaimsPrincipal(claimIdentity), new AuthenticationProperties
    {
      ExpiresUtc = DateTime.UtcNow.AddMinutes(30),
    });
    return new JsonResult(new
    {
      Result = true,
      Message = "登录成功"
    });
  }
  else
  {
    await Task.CompletedTask;
    return new JsonResult(new
    {
      Result = false,
      Message = "登录失败"
    });
  }
}

第二步，鉴权，访问AuthenticateAsync方法，通过scheme告诉Authenticate用对应的处理器，比如这里是在cookie中鉴权。这里的scheme对应的handler就是在startup中注入的CustomeScheme对应CustomeHandler,把Principal给Http.Context.User,就完成了鉴权的过程。

public async Task<IActionResult> Authentication()
{
  var result = await base.HttpContext.AuthenticateAsync("CustomScheme");
  if (result?.Principal != null)
  {
    base.HttpContext.User = result.Principal;
    return new JsonResult(new
    {
      Result = true,
      Message = $"认证成功，包含用户{base.HttpContext.User.Identity.Name}"
    });
  }
  else
  {
    return new JsonResult(new
    {
      Result = true,
      Message = $"认证失败，用户未登录"
    });
  }
}

第三步，授权，一般是先鉴权，然后授权，也就是做一些检查。

public async Task<IActionResult> Authorization()
{
  var result = await base.HttpContext.AuthenticateAsync("CustomScheme");
  if (result?.Principal == null)
  {
    return new JsonResult(new
    {
      Result = true,
      Message = $"认证失败，用户未登录"
    });
  }
  else
  {
    base.HttpContext.User = result.Principal;
  }

  //授权
  var user = base.HttpContext.User;
  if (user?.Identity?.IsAuthenticated ?? false)
  {
    if (!user.Identity.Name.Equals("Eleven", StringComparison.OrdinalIgnoreCase))
    {
      await base.HttpContext.ForbidAsync("CustomScheme");
      return new JsonResult(new
      {
        Result = false,
        Message = $"授权失败，用户{base.HttpContext.User.Identity.Name}没有权限"
      });
  }
  else
  {
    return new JsonResult(new
    {
      Result = false,
      Message = $"授权成功，用户{base.HttpContext.User.Identity.Name}具备权限"
      });
    }
  }
  else
  {
    await base.HttpContext.ChallengeAsync("CustomScheme");
    return new JsonResult(new
    {
      Result = false,
      Message = $"授权失败，没有登录"
    });
  }
}

比如，下面有一个需要授权的页面，来访问：

public async Task<IActionResult> Info()
{
  var result = await base.HttpContext.AuthenticateAsync("CustomScheme");
  if (result?.Principal == null)
  {
    return new JsonResult(new
    {
      Result = true,
      Message = $"认证失败，用户未登录"
    });
  }
  else
  {
    base.HttpContext.User = result.Principal;
  }

  //授权
  var user = base.HttpContext.User;
  if (user?.Identity?.IsAuthenticated ?? false)
  {
    if (!user.Identity.Name.Equals("Eleven", StringComparison.OrdinalIgnoreCase))
    {
      await base.HttpContext.ForbidAsync("CustomScheme");
      return new JsonResult(new
      {
        Result = false,
        Message = $"授权失败，用户{base.HttpContext.User.Identity.Name}没有权限"
      });
  }
  else
  {
    //有权限
    return new JsonResult(new
    {
      Result = true,
      Message = $"授权成功，正常访问页面！",
      Html = "Hello Root!"
    });
   }
  }
  else
  {
    await base.HttpContext.ChallengeAsync("CustomScheme");
    return new JsonResult(new
    {
      Result = false,
      Message = $"授权失败，没有登录"
    });
  }
}

小结一下（其实还是那套东西）

登录写入凭证
鉴权就是找出用户
授权就是判断权限
退出就是清理凭证

再回顾一下，Asp .Net Core标准内置的鉴权授权是如何来配置的？
1.configureservice里面

services.AddAuthentication(options =>
{
  options.DefaultAuthenticateScheme = CookieAuthenticationDefaults.AuthenticationScheme;//不能少 通过scheme找到handler
  options.DefaultSignInScheme = CookieAuthenticationDefaults.AuthenticationScheme;
  options.DefaultChallengeScheme = "Cookie/Login";
})
.AddCookie(options =>{});

2.Configure里要启用鉴权授权中间件

app.UseAuthentication();
app.UseAuthorization();

3.在controller或者Action上添加[Authorize]标签

[AllowAnonymous]
public async Task<IActionResult> Login(string name, string password)
{
  if ("chaoqiang".Equals(name, StringComparison.CurrentCultureIgnoreCase) && password.Equals("123456"))
  {
    //var claimIdentity = new ClaimsIdentity("Cookie");
    //claimIdentity.AddClaim(new Claim(ClaimTypes.Name, name));
    //claimIdentity.AddClaim(new Claim(ClaimTypes.Email, "chaoqiang@qq.com"));

    #region 升级JwtClaimTypes  cookie会短一点
    var claimIdentity = new ClaimsIdentity("Cookie", JwtClaimTypes.Name, JwtClaimTypes.Role);
    claimIdentity.AddClaim(new Claim(JwtClaimTypes.Name, name));
    claimIdentity.AddClaim(new Claim(JwtClaimTypes.Email, "chaoqiang@qq.com"));
    #endregion

    await base.HttpContext.SignInAsync(new ClaimsPrincipal(claimIdentity), new AuthenticationProperties
    {
      ExpiresUtc = DateTime.UtcNow.AddMinutes(30),
    });//省略scheme
    return new JsonResult(new
    {
      Result = true,
      Message = "登录成功"
    });
  }
  else
  {
    await Task.CompletedTask;
    return new JsonResult(new
    {
      Result = false,
      Message = "登录失败"
    });
  }
}

4.鉴权授权,一起放在这个AuthenticationAuthorization方法中，其中base.HttpContext.AuthenticateAsync(); 这一步可以不用执行，因为中间件根据标签[Authorize]已经把事情做完了。

public async Task<IActionResult> AuthenticationAuthorization()
{
  var result = await base.HttpContext.AuthenticateAsync();//默认CookieAuthenticationDefaults.AuthenticationScheme
  if (result?.Principal == null)
  {
    return new JsonResult(new
    {
      Result = true,
      Message = $"认证失败，用户未登录"
    });
  }
  else
  {
    base.HttpContext.User = result.Principal;
  }

  //授权
  var user = base.HttpContext.User;
  if (user?.Identity?.IsAuthenticated ?? false)
  {
    if (!user.Identity.Name.Equals("Eleven", StringComparison.OrdinalIgnoreCase))
  {
    await base.HttpContext.ForbidAsync();
    return new JsonResult(new
    {
      Result = false,
      Message = $"授权失败，用户{base.HttpContext.User.Identity.Name}没有权限"
    });
  }
  else
  {
    return new JsonResult(new
    {
      Result = false,
      Message = $"授权成功，用户{base.HttpContext.User.Identity.Name}具备权限"
     });
    }
   }
  else
  {
    await base.HttpContext.ChallengeAsync();
    return new JsonResult(new
    {
      Result = false,
      Message = $"授权失败，没有登录"
    });
  }
}

5.访问有授权要求的页面

[Authorize]
public IActionResult Info()
{
  //base.HttpContext.User.Identities 认证过之后就可以用了
  return View();
}

app.UseAuthentication中间件

可以看到是AuthAppBuilderExtensions这个类有个注册方法：

public static IApplicationBuilder UseAuthentication(
      this IApplicationBuilder app);

AuthAppBuilderExtensions—AuthenticationMiddleware
中间件一定是完成用户信息解析赋值给ContextUser
期间会优先执行IAuthenticationRequestHandler—Remote,远程校验（AuthenticationHandler本地基类和 RemoteAuthenticationHandler远程）

service.AddAuthenication 服务注册

调用AddAuthenicationCore 其实就是通过AuthenicationHandlerProvider 指定具体的Handler
注册handler，如何处理；

AddCookie

使用Cookie，在这里指定了CookieAuthenticationHandler作为处理逻辑

来了个Events，就是以前的管道模型套路–

又来了个SessionStore(将信息存下来，换个更简洁的ticket返回前端)(不是session，只是类似session的思路)

PS: 详细的过程需要研读源码。

可以看下如何做cookie的扩展，
SessionStore—可以MemoryCache 也可以Redis；
Event—类似于Asp.Net 的管道模型—可以扩展下

services.AddScoped<ITicketStore, MemoryCacheTicketStore>();
services.AddMemoryCache();

services.AddAuthentication(options =>
{
  options.DefaultAuthenticateScheme = CookieAuthenticationDefaults.AuthenticationScheme;//不能少 通过scheme找到handler
  options.DefaultSignInScheme = CookieAuthenticationDefaults.AuthenticationScheme;
  options.DefaultChallengeScheme = "Cookie/Login";
  })
  .AddCookie(options =>
  {
    //信息存在服务端--把key写入cookie--类似session
    options.SessionStore = services.BuildServiceProvider().GetService<ITicketStore>();
    options.Events = new CookieAuthenticationEvents()
    {
      OnSignedIn = new Func<CookieSignedInContext, Task>(
      async context =>
      {
        Console.WriteLine($"{context.Request.Path} is OnSignedIn");
        await Task.CompletedTask;
      }),
      OnSigningIn = async context =>
      {
        Console.WriteLine($"{context.Request.Path} is OnSigningIn");
        await Task.CompletedTask;
      },
      OnSigningOut = async context =>
      {
        Console.WriteLine($"{context.Request.Path} is OnSigningOut");
        await Task.CompletedTask;
      }
    };//扩展事件
});

源码解读多授权策略

鉴权解析用户信息
授权要求达成某个条件：

Scheme
Role
Policy

基于Scheme形式的授权

先看一下如何配置：

2个Use
1个Add
指定Scheme
指定Controller/Action

说到底就是：起个名字，保持统一就可以完成授权。

services.AddAuthentication(options =>
{
  options.DefaultAuthenticateScheme = CookieAuthenticationDefaults.AuthenticationScheme;
  //不能少,signin signout Authenticate都是基于Scheme
  options.DefaultSignInScheme = CookieAuthenticationDefaults.AuthenticationScheme;
})
.AddCookie(CookieAuthenticationDefaults.AuthenticationScheme, options =>
{
  options.LoginPath = "/Authorization/Index";
  options.AccessDeniedPath = "/Authorization/Index";
});

#region 基于CookieAuthentication
app.UseAuthentication();//鉴权
#endregion

app.UseAuthorization();

// 需要授权的页面
[Authorize(AuthenticationSchemes = "Cookies")]//
public IActionResult Info()
{
  return View();
}

基于Role的形式授权

看一下具体的配置：管道和注册服务的配置和上面一样，不同的地方在于登录的时候会把角色放到identity里面：

[AllowAnonymous]
public async Task<IActionResult> Login(string name, string password, string role = "Admin")
{
  //base.HttpContext.RequestServices.
  //IAuthenticationService
  if ("chaoqiang".Equals(name, StringComparison.CurrentCultureIgnoreCase) && password.Equals("123456"))
  {
    var claimIdentity = new ClaimsIdentity("Custom");
    claimIdentity.AddClaim(new Claim(ClaimTypes.Name, name));
    //claimIdentity.AddClaim(new Claim(ClaimTypes.Email, "chaoqiang@qq.com"));
    claimIdentity.AddClaim(new Claim(ClaimTypes.Email, "57265177@qq.com"));
    claimIdentity.AddClaim(new Claim(ClaimTypes.Role, role));

    await base.HttpContext.SignInAsync(CookieAuthenticationDefaults.AuthenticationScheme, new ClaimsPrincipal(claimIdentity), new AuthenticationProperties
    {
      ExpiresUtc = DateTime.UtcNow.AddMinutes(30),
    });//登录为默认的scheme  cookies
    return new JsonResult(new
    {
      Result = true,
      Message = "登录成功"
    });
  }
  else
  {
    await Task.CompletedTask;
    return new JsonResult(new
    {
      Result = false,
      Message = "登录失败"
    });
  }
}

[Authorize(Roles = "Admin")]
public IActionResult InfoAdmin()
{
  return View();
}

[Authorize(Roles = "User")]
public IActionResult InfoUser()
{
  return View();
}

[Authorize(Roles = "Admin,User")]
public IActionResult InfoAdminUser()
{
  return View();
}

基于Policy的授权

管道配置与之前两种一致，不同之处在于service注入这有一个关于Authorization的注入。

#region 基于策略授权
services.AddAuthentication(options =>
{
  options.DefaultAuthenticateScheme =CookieAuthenticationDefaults.AuthenticationScheme;//不能少
  options.DefaultSignInScheme = CookieAuthenticationDefaults.AuthenticationScheme;
})
.AddCookie(CookieAuthenticationDefaults.AuthenticationScheme, options =>
{
  options.LoginPath = "/Authorization/Index";
  options.AccessDeniedPath = "/Authorization/Index";
});

services.AddAuthorization(options =>
{
  options.AddPolicy("AdminPolicy",
    policyBuilder => policyBuilder
    .RequireRole("Admin")   //Claim的Role是Admin
    .RequireUserName("Eleven")  //Claim的Name是Eleven
    .RequireClaim(ClaimTypes.Email) //必须有某个Cliam
  );//内置

  options.AddPolicy("UserPolicy",
    policyBuilder => policyBuilder.RequireAssertion(context =>
    context.User.HasClaim(c => c.Type == ClaimTypes.Role)
    && context.User.Claims.First(c => c.Type.Equals(ClaimTypes.Role)).Value == "Admin")
  );//自定义
});

#region Policy
[Authorize(AuthenticationSchemes = "Cookies", Policy = "AdminPolicy")]
public IActionResult InfoAdminPolicy()
{
  return View();
}

[Authorize(AuthenticationSchemes = "Cookies", Policy = "UserPolicy")]
public IActionResult InfoUserPolicy()
{
  return View();
}

[Authorize(AuthenticationSchemes = "Cookies", Policy = "QQEmail")]
public IActionResult InfoQQEmail()
{
  return View();
}

[Authorize(AuthenticationSchemes = "Cookies", Policy = "DoubleEmail")]
public IActionResult InfoDoubleEmail()
{
  return View();
}
#endregion

溯源：

从AddMVC说起– AddAuthorization
PolicyServiceCollectionExtensions
AuthorizationServiceCollectionExtensions
常规的注册多个对象
AddAuthorizationPolicyEvaluator

AddAuthorization会看到Option里面就是字典存储Policy和提供名称获取

AuthorizationPolicy：

CombineAsync：把特性里面的三个属性，转成Policy,
其实Scheme/Role其实都是转换成Policy
发现里面有一组Requirements，是校验规则的实现
生成一个Policy—PolicyBuilder+Requirements
AuthorizationPolicyBuilder：建造者，组装Policy

下面自己定义一个Requirement，使得两种邮箱都能支持：

JWT和Identity

Chaoqiang

https://www.zhengchaoqiang.com/2020/05/23/netcore-authentication-authorization/

本博客所有文章除特別声明外，均采用 CC BY 4.0 许可协议。转载请注明来源 Chaoqiang !

Net Core Authentication Authorization

Netcore认证授权与IdentityServer4（2）JWT

主要概要这个文章主要来聊一聊Net Core中的认证与授权，以及Net Core生态中非常火热的IdentityServer4这个组件的使用，主要内容如下：鉴权授权流程变化源码解读鉴权源码解读多授权策略 JWT和Identity

2020-05-29 .Net Core Learning Series

Net Core JWT

NetCore 开发实战（2）——微服务实战

26 | 工程结构概览：定义应用分层及依赖关系从这一节开始进入微服务实战部分这一节主要探讨工程的结构和应用的分层在应用的分层这里定义了四个层次：领域模型层基础设施层应用层共享层可以通过代码来看一下共享层一共建立三

2020-05-02 NetCore 开发实战

Net Core

Netcore认证授权与IdentityServer4（1）鉴权授权源码

主要概要

鉴权授权流程变化

Cookie/Session

源码解读鉴权

登录验证-授权

Cookie+Session方式

Authentication和Authorization

造轮子

app.UseAuthentication中间件

service.AddAuthenication 服务注册

AddCookie

源码解读多授权策略

基于Scheme形式的授权

基于Role的形式授权

基于Policy的授权

JWT和Identity

你要请我吃糖嘛!
